Wood Connectors DIY Hardware Products

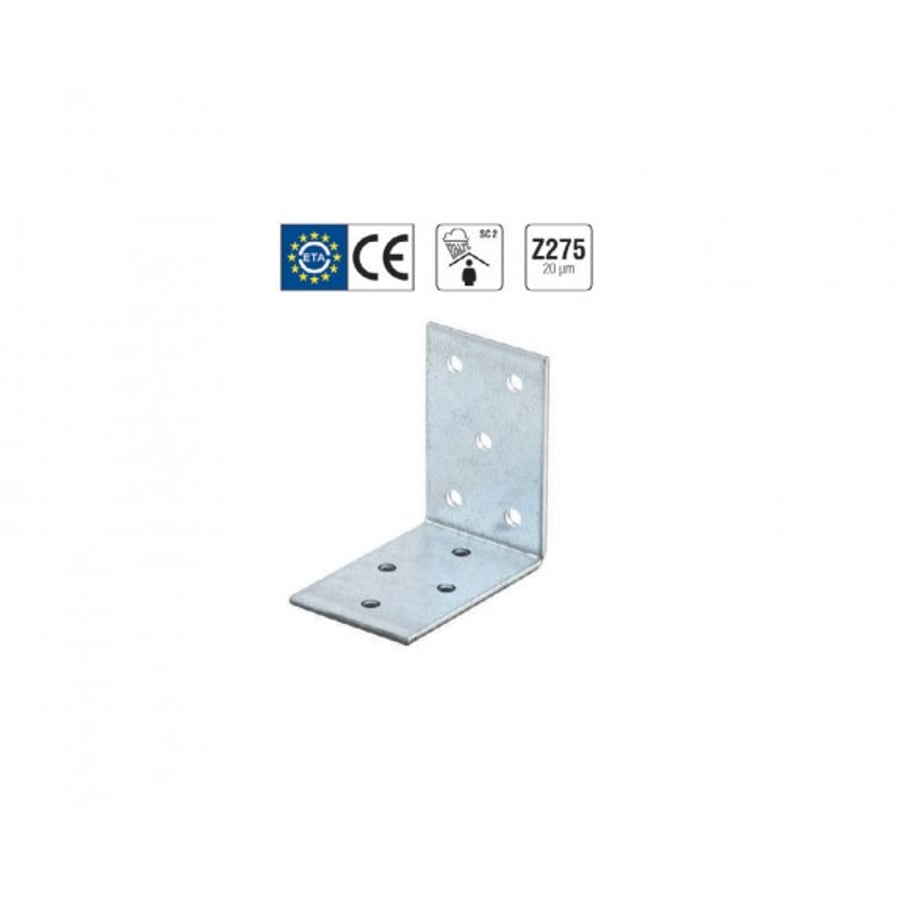

Angle Connectors
Item Code: AC
Angle Connectors is part of KEAA International's indoor wood connectors range (Wood Connectors and DIY Hardware). Material: S250GD + Z 275 according to DIN EN 10346. Corrosion protection: 275 g/m2 on both sides, corresponding to zinc layer thickness of approx 20 µm. Mechanical properties: YS min. 250 MPa, UTS min. 350 MPa. Available in 4 sizes (40 to 80 mm); see the specification table for full dimensions. All sizes carry CE marking to ETAG 015. Item code: AC.
- Item Code
- AC
- Category
- Indoor Wood Connectors
Specifications
| Material | S250GD + Z 275 according to DIN EN 10346 |
|---|---|
| Corrosion Protection | 275 g/m2 on both sides- corresponding to zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |
| Dimensions | Approval / ETAG |
| a | b / c / d |
| 40 | 40 / 20 / 2.0 / CE / ETAG 015 |
| 60 | 60 / 40 / 2.5 / CE / ETAG 015 |
| 60 | 60 / 60 / 2.5 / CE / ETAG 015 |
| 80 | 80 / 80 / 2.5 / CE / ETAG 015 |
Part of our garden hardware range
