Wood Connectors DIY Hardware Products

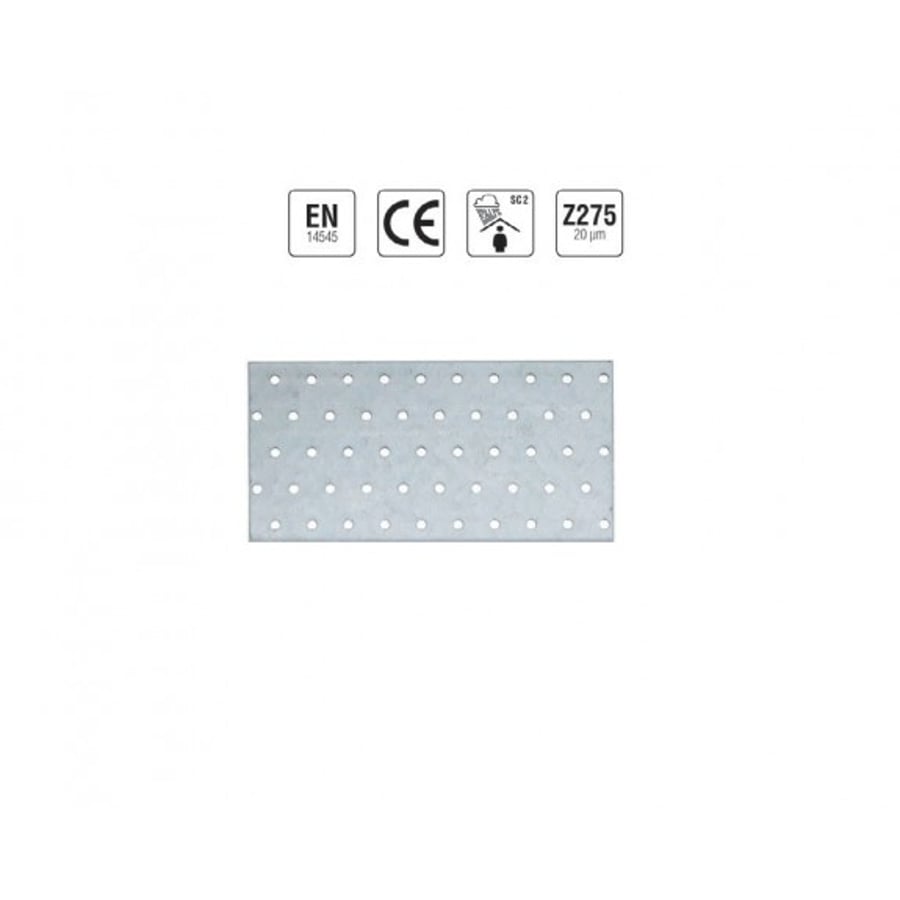

Perforated Plates Type A
Item Code: PPTA
Perforated Plates Type A is part of KEAA International's indoor wood connectors range (Wood Connectors and DIY Hardware). Material: S 250GD + Z 275 according to DIN EN 10346. Corrosion protection: 275 g/m2 on both sides, corresponding to a zinc layer thickness of approx 20 µm. Mechanical properties: YS min. 250 MPa, UTS min. 350 MPa. Available in 12 sizes (40 to 120 mm); see the specification table for full dimensions. Selected sizes carry CE marking to ETAG 015. Item code: PPTA.
- Item Code
- PPTA
- Category
- Indoor Wood Connectors
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
|---|---|
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |
| Dimensions | Approval / ETAG |
| a | b / d |
| 40 | 120 / 2.0 / CE / ETAG 015 |
| 40 | 160 / 2.0 / CE / ETAG 015 |
| 60 | 140 / 2.0 / - / - |
| 60 | 200 / 2.0 / CE / ETAG 015 |
| 60 | 240 / 2.0 / - / - |
| 80 | 200 / 2.0 / - / - |
| 80 | 240 / 2.0 / - / - |
| 80 | 300 / 2.0 / CE / ETAG 015 |
| 100 | 200 / 2.0 / CE / ETAG 015 |
| 100 | 240 / 2.0 / - / - |
| 100 | 300 / 2.0 / CE / ETAG 015 |
| 120 | 300 / 2.0 / CE / ETAG 015 |
