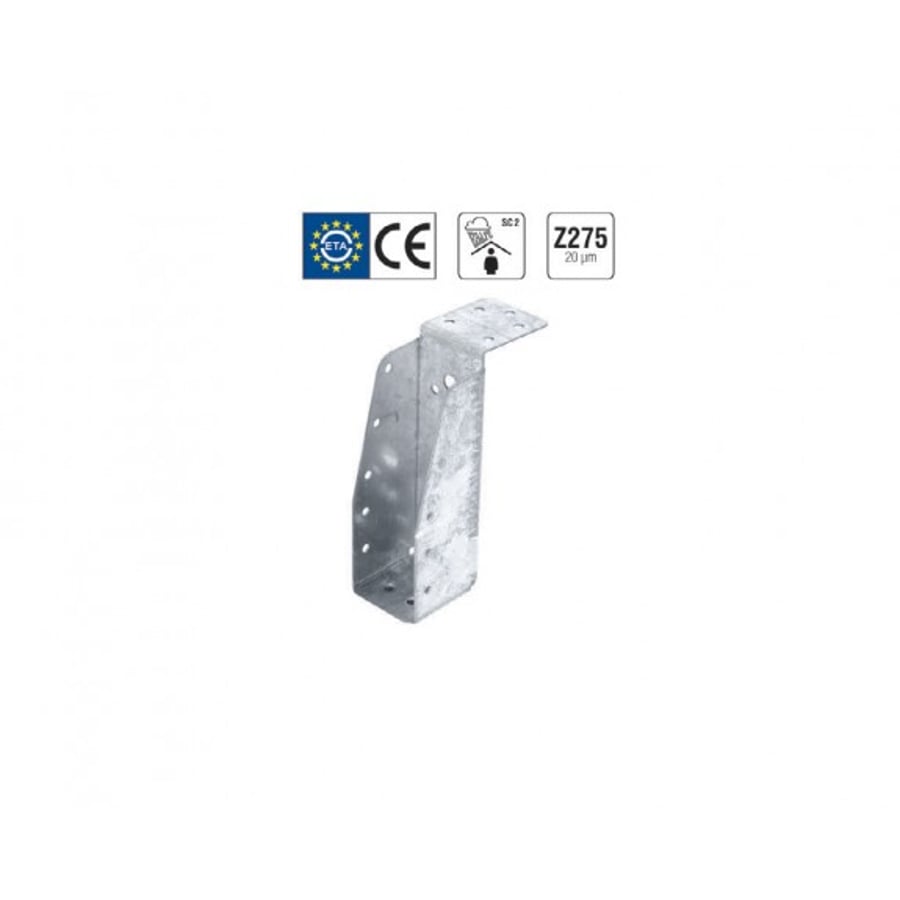

Joist Hangers TYPE C
Item Code: JHTC
Joist Hangers TYPE C is part of KEAA International's indoor wood connectors range (Wood Connectors and DIY Hardware). Material: S 250GD + Z 275 according to DIN EN 10346. Corrosion protection: 275 g/m2 on both sides, corresponding to a zinc layer thickness of approx 20 µm. Mechanical properties: YS min. 250 MPa, UTS min. 350 MPa. Available in 2 sizes (46 to 71 mm); see the specification table for full dimensions. All sizes carry CE marking to ETAG 015. Item code: JHTC.
- Item Code
- JHTC
- Category
- Indoor Wood Connectors
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
|---|---|
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |
| Dimensions | Approval / ETAG |
| a | b / d |
| 46 | 146 / 2.0 / CE / ETAG 015 |
| 71 | 171 / 2.0 / CE / ETAG 015 |
