Pole Anchors & Ground Plates
Structural timber connectors, post supports and ground anchors for decks, pergolas, fencing and joinery, precision-formed and corrosion-protected.
Load Rated
Structural Grade
Corrosion Resistant
Hot Dip Galvanized
Precision Fit
CNC Formed
Versatile
Indoor & Outdoor
Showing 1–12 of 12 products
Ground Plates Bolt Type
GPBT
Ground Plates For Round Post
GPFRP
Ground Plates For Square Post
GPFSP
Ground Plates Wedge Grip
GPWG

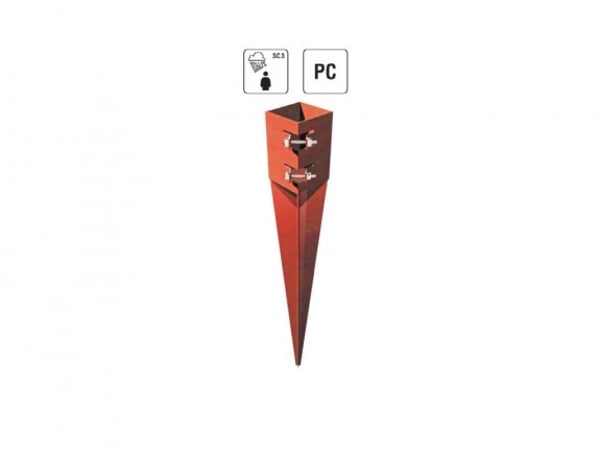

Pole Anchors Bolt Type
PABT
Pole Anchors For Concrete
PAFC

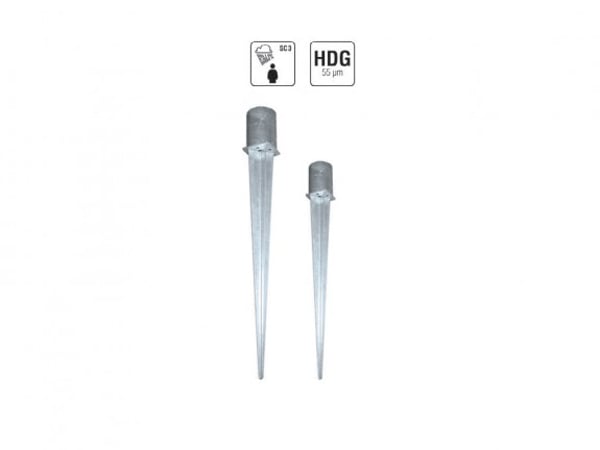

Pole Anchors For Round Post
PAFRP

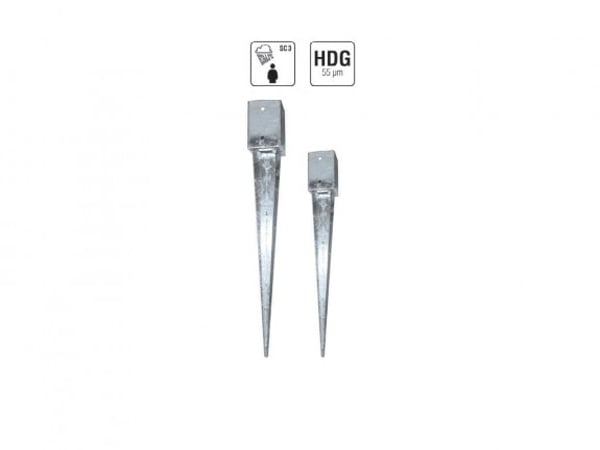

Pole Anchors For Square Post
PAFSP

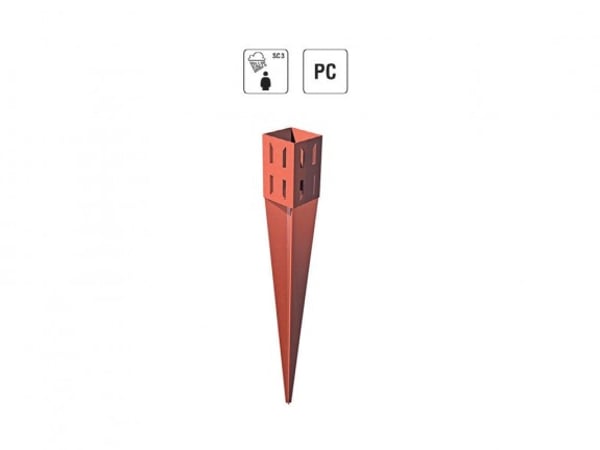

Pole Anchors Wedge Grip
PAWG
Rotatable Pole Anchors For Square Post
RPAFSP
Spiral Pole Anchor For Round Post
SPAFRP01
Spiral Pole Anchors For Square Post
SPAFSP
Pole Anchors & Ground Plates
Pole anchors and ground plates are the fixing layer underneath fencing, signage and light timber structures. The choice between them is a choice about the ground: a spiral anchor screws into soft soil and holds by the thread, a bolt type anchor fixes to something solid already there, and a ground plate spreads the load across a surface rather than into it. KEAA International manufactures 12 patterns from structural steel to EN 10025-2, covering round and square post fittings in each type, wedge grip versions, rotatable anchors where the post has to be oriented after setting, and anchors made for fixing into concrete. All are made in our own plants in Ludhiana, India.
What the range includes
Pole anchors for round posts, square posts and concrete, in bolt type and wedge grip patterns, plus rotatable anchors for square posts. Spiral pole anchors for both round and square posts, which screw into soft ground. Ground plates for round and square posts, in bolt type and wedge grip patterns.
Standards and finish
Manufactured from S235JR structural steel to DIN EN 10025-2. Finish is hot dip galvanized to DIN EN 1461 or electro-galvanized, depending on the model, so confirm which you need when you enquire. Welding is carried out by welders certified to EN 1090-2 and EN 3834-2, accredited by SLV Germany.
Where it is used
Fence lines, garden structures, signage posts, and light timber work where excavation is impractical or undesirable. Spiral anchors in particular are specified where a post has to be set without concrete. Buyers are fencing contractors, landscapers, builders merchants and DIY retail.
Why buy it from the manufacturer
Anchors, plates and the post supports that sit on them come from one range, so the post fit is consistent whichever fixing method the ground calls for. Manufacturing quality is certified to ISO 9001:2015 by TÜV Rheinland.
- ISO 9001:2015
- Manufacturing since 2003
- Exported to 42+ countries
Need a quotation for this range?
Send the sizes, finish and quantities you need. We manufacture in our own plants in Ludhiana, India and export to more than 42 countries, so quotations are for container volumes as readily as for single lines.
Request a QuoteCommon questions
In soft ground where you want to avoid excavation and concrete. The spiral screws in and holds on the thread, so a post can be set and, if needed, removed again without breaking out a foundation.
Wedge grip clamps the post by wedging, bolt type fixes through it. The choice usually follows whether you want the post removable and what the post section is. Both are made for round and square posts.
Yes. Both ranges are made in the same plant to the same tolerances, so anchors, ground plates and post supports fit the same post sections.
